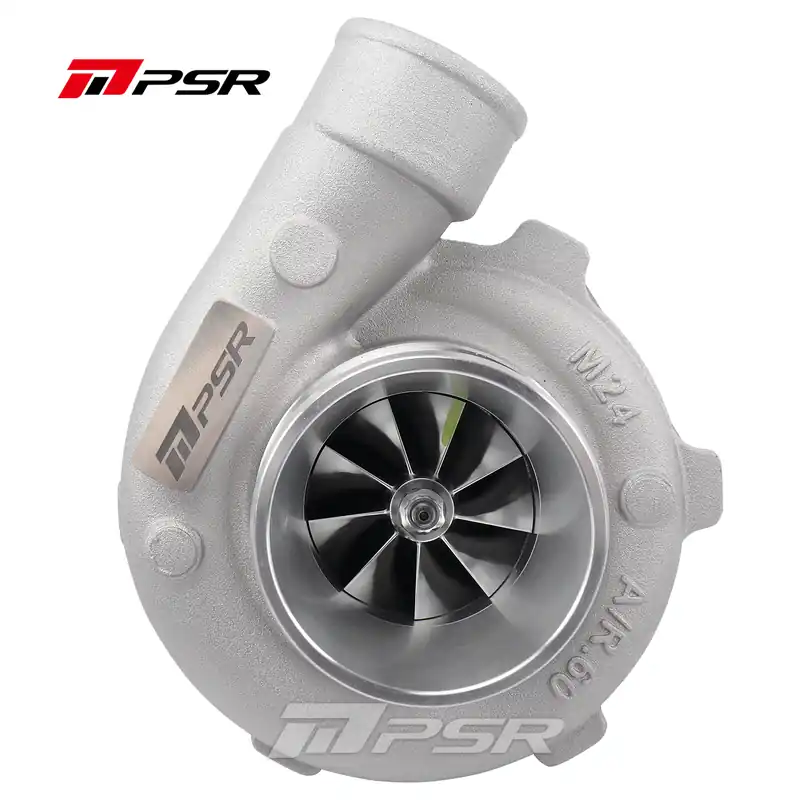

Markdown Pulsar Turbo Systems PSR3076 GEN2 Compact Dual Ball Bearing Turbocharger

Description

• Dual Ceramic Ball Bearing System
• 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel
• Multiple options for turbine housing
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~65 lb/min, rated @ 750 FWHP
• Compressor Wheel: 58*76mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 3? Hose
• Compressor Outlet: 2? Hose
• Turbine Inlet: T3, T4 or 2.5? V-Band
• Turbine Outlet: 3? V-Band (3.55?OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.
